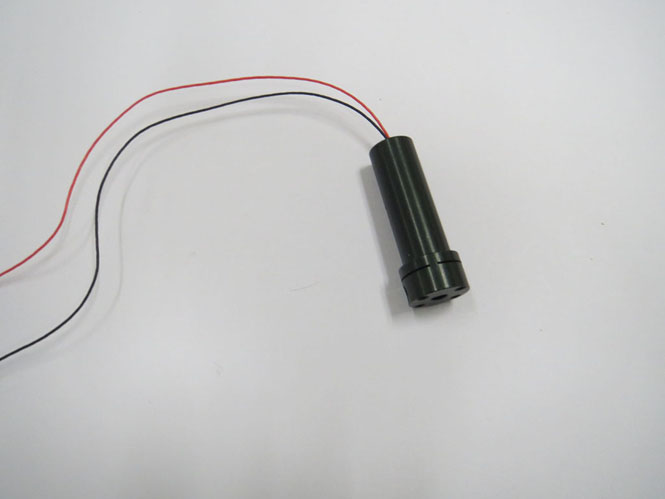

650nm 1mw~100mw red line laser modules

Characteriscics：

High-quality laser diode,optical glass lens, driver circuit and housing

Better line quality，high frequency modulated

High reliability, high stability, long life,low price

Applications:

Machine vision
Industrial inspection

Industrial marking devices

3D contour mapping
Positioning & visualization
Biomedical
High-end alignment

Laser targeting devices and so on..

Specifications：
Wavelength：635nm，650nm，658nm

Output power：1-100mW

Laser class：II，IIIa，IIIb
Beam Divergence：0.1mrad ~ 0.6mrad

Fan angle：10°～135°

Laser line accuracy：<30”(at 5m)
Operating Voltage：DC3V-5V

Port：TTL

modulated frequency: 1Hz-1MHz

Operating Temperature：-10℃～70℃

Storage Temperature：-30℃～80℃

Dimensions：Φ12mm ×45mm，Φ15mm ×43mm，Φ16mm ×60mm

MTTF：10000 hours

Warranty：1 year
